| Specifications: |
| Design Wavelength |
532nm |
Wavelength Range |
532nm,1064nm or 632.8nm |
Recommended Beam Diameter |
1.0-1.5mm |
| Dimension Tolerance |
¡À0.2mm |
Surface Quality |
60/40 S/D |
Wavefront Distortion |
λ/2 (p-v, over clear aperture, @ 632.8nm) |
Coatings |
Broadband AR Coatings WAR @ 532-800nm or Multilayer AR Coatings VAR @1064nm |
Housing Material |
Black anodized aluminum |
|
| |
|
|
LBE0101 |
LBE0201 |
| |
|
LBE0301 |
| |

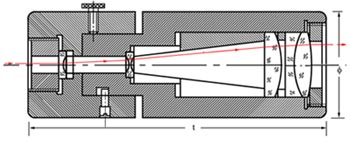

| Precision Laser Beam Expander Standard Products: |
Part No. |
Expansion Ratio |
Input Aperture(mm) |
Exit Aperture(mm) |
¦Õ(mm) |
t(mm) |
LBE0101 |
5X |
3 |
8 |
25.0 |
59 |
LBE0201 |
10X |
3 |
15 |
30.0 |
92 |
LBE0301 |
20X |
2.5 |
30 |
45.0 |
143 |
|
Order information: Part No. - Wavelength Range
For example: LBE0101 - 532nm
|
| Note: Other Expansion Ratio and wavelength are upon request. Other size and customer designed expander are also upon request. |
